There are three main ways to polish stainless steel pipes: mechanical polishing, electropolishing, and chemical polishing.
ASTM A312 Polished Stainless Steel Pipe Manufacturer in China
We at Xintongda Special Steel (XTD) manufacture smooth and finished polished stainless steel pipes in Songyang, China. The SS polished pipe is made with high-quality stainless steel material. As a leading manufacturer and supplier, we produce these pipes according to ASTM A312, EN, JIS, and GB standards using a precise and accurate manufacturing process. To achieve a polished finish and reduce its surface roughness, this pipe is finished using mechanical, chemical, or electropolishing methods. We offer polished SS pipes with polishing levels as high as 600 grit. Some common surface options include a brushed or satin finish with 180-grit and a semi-mirror finish with 320-grit. We control the surface roughness (Ra) to meet both aesthetic and functional needs. A polished finish makes stainless steel pipes smoother, which reduces surface corrosion initiation sites and improves cleanability compared to standard mill-finish pipes. These pipes are used in places where cleanliness, flow efficiency, or appearance are important. Here at Xintongda, we have an annual supply capacity of 25,000 tons.
-
Standard
ASTM A312
-
OD Range
6 - 1016 mm
-
Thickness
1 - 65 mm
-
Length
≤ 18m
Get a free quote now
Technical Data
Technical Data
What is Stainless Steel Polished Pipe?
A stainless steel polished pipe is a tubular product made of stainless steel. This pipe gets the polished look because it undergoes controlled surface finishing to reduce roughness and improve appearance and performance. Polished stainless steel pipes are defined by three main attributes: the grade used, the polishing method, and the grit level applied. Common austenitic grades such as 304, 316, 304L, and 316L respond well to polishing and retain corrosion resistance after finishing. Grit levels range from coarse satin finishes to fine mirror-like surfaces. A well-polished stainless steel pipe maintains hygiene and resists corrosion. Lower surface roughness keeps dirt and bacteria from building up, makes things easier to clean, and helps fluids flow smoothly. Mirror-polished stainless steel pipe is very popular in architecture and interiors because it makes things look visually better. Other uses include food processing lines, pharmaceutical transfer systems, decorative railings, and handling chemicals. Different industries like different finishes because of how easy they are to clean and how they look. Some common finishes are #4 Brushed, #8 Mirror, or Electropolished.
Grit levels and surface roughness
| Grit Level | Typical Finish Description | Approx. Ra (µm) |
| 180 | Brushed / Satin | 0.8–1.2 |
| 240 | Fine Satin | 0.6–0.8 |
| 320 | Semi-Mirror | 0.4–0.6 |
| 400 | Bright Polish | 0.25–0.4 |
| 600 | Near Mirror Finish | ≤0.2 |
| Buffed | Mirror Finish | ≤0.15 |
Key Features and Advantages of Stainless Steel Polished Pipes
There are 11 key features and advantages of SS polished pipes:
- Improved corrosion resistance: The pipe’s smooth surface reduces crevice formation and slows down local corrosion.
- Enhanced hygiene: Since it has low Ra values, the cleaning and maintenance become easier.
- Superior aesthetic appeal: A uniform finish supports visible and decorative uses.
- Improved performance: The pipe’s smooth walls improve flow efficiency in liquid and gas systems.
- Reduced surface roughness: Lower Ra values limit contamination and scaling.
- Professional appearance: Consistent finishing gives installations a clean, ordered look.
- Long service life: Reduced wear and corrosion extend operating life.
- Excellent surface cleanliness: Ideal for sanitary and controlled environments.
- Ease of inspection: Flaws and deposits are easier to spot due to the smooth surface.
- Strength and durability: Quality construction supports pressure and load demands
- High-temperature resistance: Austenitic grades retain mechanical strength at elevated service temperatures.
Types of Polished Finishes Available for SS Pipes
The preferred type of polished finish depends on the application and its use. The various surface finishes and grit levels are explained below:
180 Grit
The 180-grit polished SS pipe comes with a brushed or satin finish with visible linear lines. It has good glare control and works well in architectural and industrial areas.
240 Grit
A 240-grit stainless steel polished pipe has a finer satin finish with reduced grain visibility. It is easy to maintain and provides an aesthetic look. This finish is suitable for decorative industrial uses and general process lines.
320 Grit
This is a semi-mirror finish achieved by abrasive polishing. It provides a higher polish than 180. The 320 grit is common in food processing and visible equipment.
400 Grit
A 400-grit SS polished pipe has a bright, smooth surface with limited grain. It is mainly used for higher-end decorative and hygienic systems.
600 Grit
This grit provides a near mirror surface. The 600 is chosen where very low roughness and high reflectivity are needed.
Mirror Finish (Buffed)
A true Mirror Finish is achieved by buffing after fine polishing. It is used for architectural features and high-visibility installations.
Electro Polished Finish
In this, the material is removed electrochemically rather than mechanically. This creates the lowest Ra values and is preferred in pharmaceutical and biotech systems.
Comparison of Polished Finishes for SS Pipes
| Finish Type (Grit/Process) |
Surface Appearance | Key Characteristics | Common Uses |
| 180 Grit | Brushed / satin with visible lines | Good glare control | Architectural, industrial areas |
| 240 Grit | Finer satin, reduced grain | Easy maintenance, aesthetic | Decorative industrial, process lines |
| 320 Grit | Semi-mirror | Higher polish than 180 | Food processing, visible equipment |
| 400 Grit | Bright, smooth, minimal grain | Decorative, hygienic | High-end décor, hygienic systems |
| 600 Grit | Near mirror | Very low roughness, high reflectivity | High-finish applications |
| Mirror (Buffed) | True mirror | Buffed after fine polishing | Architectural, high-visibility areas |
| Electro Polished | Ultra-smooth | Lowest Ra values, electrochemical process | Pharmaceutical, biotech systems |
Common Austenitic Grades Used for Polished Stainless Steel Pipes
We at Xintongda manufacture and supply SS polished pipes in a lot of different austenitic grades. Each grade has its own set of properties and uses.
- 304 Stainless Steel The 304 SS pipe is often called 18/8 stainless steel because it has 18% chromium and 8% nickel in it. It is a strong pipe that doesn't rust easily. It is often used for general polishing applications.
- 304L Stainless Steel Being a low-carbon version of 304, 304L offers better resistance to intergranular corrosion, especially in welded applications. It is preferred where a smooth and aesthetic finish is needed.
- 316 Stainless Steel The 316 has molybdenum in it, which makes it better at resisting chlorides. It is commonly used in chemical and marine environments.
- 316L Stainless Steel This is a low-carbon grade of 316. 316L is used in hygienic and welded systems requiring stable corrosion performance.
- Other Grades Other grades of stainless steel pipes that can be polished include heat-resistant and stabilised alloys.
- 310 Stainless Steel: Suitable for high-temperature service.
- 321 Stainless Steel: Titanium-stabilised for thermal stability.
- 347 Stainless Steel: Niobium-stabilised for high-temperature strength.
- 904L Stainless Steel: High-nickel, molybdenum-alloyed grade with strong corrosion resistance.
Major Industries and Applications of Polished Stainless Pipe
The polished SS pipe is used in industries where cleanliness, a smooth finish, and a visual appearance are important.
Food & Beverage Processing
Mainly used in transfer lines, mixing systems, pipelines, and tanks.
Pharmaceutical & Biotechnology
SS polished pipe is found in process piping and clean utility systems.
Chemical and Petrochemical
In the chemical and petrochemical industry, this pipe is used to handle corrosive fluids.
Architecture, Construction & Interior Design
ASTM A312 polished decorative stainless steel pipe is common in railings, facades, and interiors.
Furniture & Home Goods
Applied to visible frames and supports for a clean, modern finish.
Power Generation
Mainly used in auxiliary piping exposed to heat and corrosive environments.

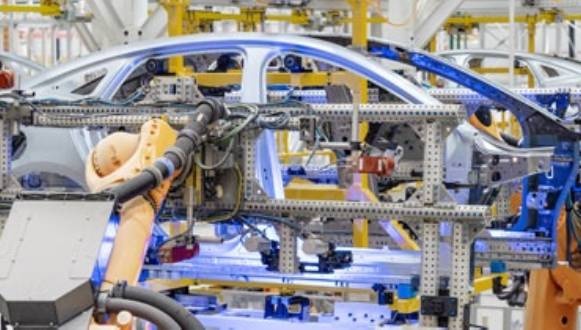

Automotive
SS polished pipe is useful in exhaust and fluid systems.
Marine
Applied in underwater pipelines, flooring supports for shipbuilding, piping for offshore platforms, and desalination plants.
Quality Control & Testing for SS Pipe Polish
We ensure that all our SS polished pipes undergo strict quality checking before we supply them. The list given below highlights the tests that we conduct:
- Surface finish inspection
- Dimensional accuracy check
- Chemical composition test
- Mechanical testing
- PMI testing (on request)
- Certification as per standards
If you want to know more product details, please contact us!
Frequently Asked Questions
-
What are the different types of stainless steel polishing techniques?
-
What is the Difference Between Polished and Unpolished Stainless Steel Pipe?The main difference between a polished and an unpolished stainless steel pipe is that the polished one has a smooth and reflective surface, achieved through mechanical/ electro-polishing. An unpolished pipe, on the other hand, has a dull and rough surface.
-
What is the Difference Between Polished and Electropolished Pipe?In a polished pipe, a mechanical polishing process is used to smooth the surface physically, whereas an electro-polished pipe uses an electrochemical process to remove materials chemically for lower Ra values.
-
What types of Polished Finishes are available for Stainless Steel Pipes?Here at XTD, we provide options ranging from 180-grit satin to 600-grit near-mirror, mirror finish, grit-polished, custom finishes, etc.
-
What is surface roughness (Ra) in polished stainless pipes?The surface roughness (Ra) in a polished SS pipe basically measures average surface roughness. The value is expressed in micrometres (µm). If the Ra is low, it means that the pipe has a smoother finish.
