The maximum operating temperature of Nickel 200 seamless pipe is around 315°C (600°F).

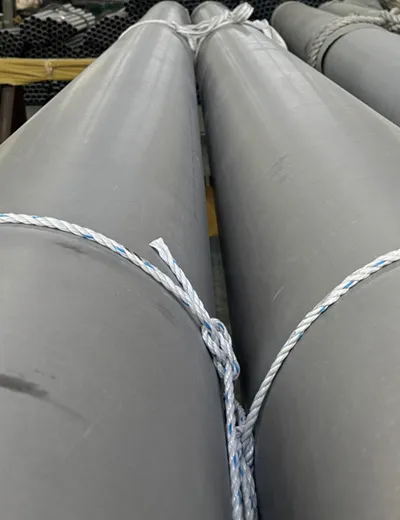

ASTM B161 Nickel 200 Seamless Pipe Manufacturer
We are Xintongda Special Steel (XTD), and we manufacture and supply Nickel 200 seamless pipe right here in China. If you work with corrosive media or need a pipe that holds up in tough thermal conditions, this is the grade worth looking at. Nickel 200 also called alloy 200 or UNS N02200 is a seamless tubular product built from commercially pure nickel (around 99.6%), with only small traces of iron, manganese, copper, carbon, silicon, and sulfur making up the rest. Every pipe we produce fully meets the ASTM B161 standard. What makes this grade stand out? Three things, mainly — its corrosion resistance is hard to beat, it stays stable at elevated temperatures, and its electrical and thermal conductivity numbers are among the best you will find in a pure nickel product.
Nickel 200 pipe, when exposed to caustic alkalis, seawater, neutral/reducing media, and de-aerated acids, forms a protective layer of oxide, which prevents corrosion. Due to these characteristics, it is extensively used in industrial applications containing harsh environments and elevated temperatures. Its commercially pure composition gives it advantages over alloyed nickels in purity-sensitive and electrically demanding environments. We supply Nickel 200 pipes in different sizes as per the customers’ needs. The customers across China and other countries trust us because we have 4 decades of experience in this industry and hold multiple international certifications.
Our ASTM B161 Nickel 200 pipe meets the following specifications :
-
Standard
ASTM B161
-
OD Range
6-457 mm
-
Thickness
1-65 mm
-
Length
≤ 18 m
Get a free quote now
Technical Data
Technical Data
Alloy 200 Seamless Pipe Manufacturing Process
To manufacture nickel 200 seamless pipe, we take a round bar and pass it through a raw material inspection. Then, we peel and cut the bar according to the length required. Pickling, hot extruded, heating, centring, and grinding come next. The bar is then elongated and shaped using cold rolling or cold drawing. The last steps include heat-treating, straightening, and cutting to size. At the end, the pipe is sent for inspection.
Key Features of Nickel Alloy 200 Pipe
Ni 200 pipe has 5 main features that make it different from other alloys. They are:
- Excellent Corrosion Resistance: The 99.6% nickel content in this alloy makes it highly resistant to caustic alkalis and reducing environments.
- High Thermal and Electrical Conductivity: Since this material has high purity, it is well known for its high thermal and electrical conductivity.
- Magnetic Permeability: This alloy is ferromagnetic under room temperatures, and the magnetic behaviour changes at high temperatures. Because of this, it is used in a lot of electrical devices.
- Fabricability: Alloy 200 is easy to work with, has a low work hardening rate, and can be cold formed, bent, and drawn to required configurations with ease.
- Suitability for Purity-sensitive Applications: This alloy has about 99.6% commercially pure nickel in it, which lowers the risk of metal ion contamination by a lot. This means that the pipe can be used in places where the alloy's purity is important.
ASTM B161 Alloy 200 Pipe Equivalent Material
For Nickel Alloy UNS N02200 seamless (SMLS) pipe, the equivalent materials include similar high-purity nickel compositions. The werkstoff number is 2.4066, while the EN is Ni 99.2.
| GRADE | UNS | WERKSTOFF NR | AFNOR | EN | JIS | BS | GOST |
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
ASTM B161 Nickel 200 Seamless Pipe Tolerance
The dimensional tolerances for ASTM B161 Nickel 200 seamless pipe vary based on manufacturing method (cold-worked vs hot-finished) and outer diameter size. The table below shows the permissible variations for OD, thickness, and length.
| STANDARD | OD(D) MM |
TOLERANCE(MM) COMMON HIGH |
THICKNESS(S) MM |
TOLERANCE | LENGTH MM |
TOLERANCE MM |
| B161 (Cold-worked Pipe) |
D≤10 | ±0.10 | S(ave):±15% | S(Min):+30%/0 | OD≤50.8:+3.2/-0 OD≥50.8:+4.8/-0 Details refer to B829 |
|
| 10<D≤16 | ±0.13 | |||||
| 16<D≤38 | ±0.19 | S(ave):±10% | S(Min):+22%/0 | |||
| 38<D≤76 | ±0.25 | |||||
| 76<D≤114 | ±0.38 | S(ave):±12.5% | S(Min):+28%/0 | |||
| 114<D≤152 | ±0.51 | |||||
| 152<D≤168 | ±0.64 | |||||
| 168<D≤219 | ±0.79 | S(ave):+15%/-12.5% | S(Min):+30%/0 | |||
| 219<D≤356 | +1.57/-0.79 | |||||
| 356<D≤610 | +3.18/-0.79 | |||||
| B161 (Hot-worked Pipe) |
40≤D≤114 | ±0.51 | for nominal wall: ±10%; ±12.5% |
for min wall: ±28.5%/0 | OD < 50.8: +3.2/-0 OD≥50.8: +4.8/-0 Details refer to B829 |
|
| 114<D≤168 | ±0.64 | |||||
| 168<D≤235 | ±0.76 | |||||
100% Certified Testing & Documentation
- EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Raw Materials Certificate
- 100% PMI
- Heat Treatment Charts
- Third-Party Inspection Report
- Surface roughness and size measurement
- Manufacturer Test Certificate (Impact Testing, Flattening, Flare, Bend, Hardness, Intergranular, Pitting Corrosion, Grain size, ET, UT, HT)
- Laboratory Test Certificate from the Government-Approved Lab
Nickel Alloy UNS N02200 Seamless Pipe Industrial Applications
The industrial applications of the Nickel 200 seamless piping include chemical processing, aerospace, marine, oil and gas, electrical components, and alkali production facilities. The uses are given below:
Chemical Processing
Used to move aggressive chemicals in corrosive fluid transport, to manufacture caustic soda and chlorine in chemical production, and to handle chlorinating aliphatic hydrocarbons in hydrocarbon processing.
Aerospace
Ni 200 is used in aerospace electronic parts, corrosion-resistant ducting, fuel system hardware, and certain missile and defense components.
Marine
Generally used in seawater desalination to transport corrosive seawater, in shipbuilding for piping to various ship systems, etc.
Oil and Gas
This pipe is used for offshore platforms, storage & transportation, heat exchangers, and condensers.
Electrical components
Used in wiring & contacts, battery components, transistor enclosures, and heating elements.
Frequently Asked Questions
-
What is the maximum operating temperature of Nickel 200 seamless pipe?
-
What are the properties of nickel 200?The properties of nickel 200 (UNS N02200) are:
- Good mechanical strength (tensile 55 ksi/ 380 MPa, yield 15 ksi/ 105 MPa)
- Excellent corrosion resistance (caustic alkalis, reducing chemicals)
- High electrical/thermal conductivity (approximately 70–90 W/m·K at room temperature)
- Ferromagnetic/ magnetostrictive traits
