Monel Seamless pipes have no weld seams, removing weak points and reducing the risk of failure. Its uniform structure ensures consistent corrosion resistance across the pipe wall.

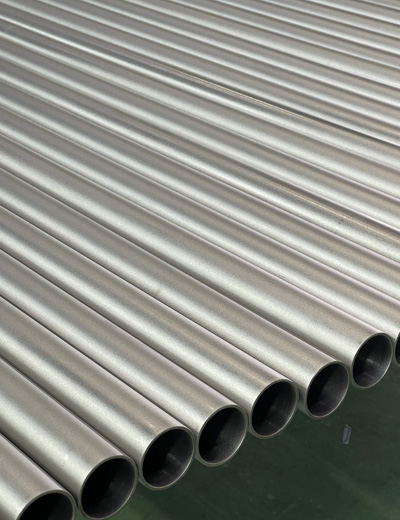

Monel Seamless Pipe Manufacturer
We are Zhejiang Xintongda Special Steel (XTD), a China-based manufacturer of Monel seamless pipe. We have been producing Monel seamless pipe since 1985. Monel seamless pipe is a nickel-copper alloy pipe (63 to 70% Ni, 28 to 34% Cu) produced without a longitudinal weld from a solid billet by hot piercing and cold drawing. Its defining strengths are resistance to de-aerated hydrofluoric acid, high-velocity seawater, and reducing acids, plus stable strength from cryogenic temperatures to about 538 °C (1000 °F). We supply two grades: Monel 400 (UNS N04400) to ASTM B165 for solid-solution service, and Monel K-500 (UNS N05500) supplied to a company specification that references ASTM B865 for chemistry and age-hardened heat-treat condition (there is no dedicated ASTM standard for K-500 in seamless pipe or tube form). Common industries include marine, hydrofluoric acid alkylation, oil and gas, chemical processing, and desalination. We hold multiple international certifications, listed on our Certificate page. Each order is supplied with material test certificates (EN 10204 3.1 or 3.2) and third-party inspection reports on request.
-
OD Range
6 - 457 mm
-
Thickness
1 - 65 mm
-
Length
≤ 18 m
Get a free quote now
What is a Monel Seamless Pipe?
The Monel seamless pipe is a high-performance tubular product made from a nickel-copper alloy. It contains approximately 63-70% nickel and 28-34% copper. The term "seamless" indicates that these pipes are manufactured without any welded joints, which results in a uniform structure throughout the pipe wall. We produce Seamless Monel pipes using special processes to avoid weak points found in welded pipes. This construction method ensures consistent material properties and enhanced reliability under extreme conditions. Our Monel grades contain additional elements like iron (up to 2.5%) and manganese (up to 2%) to optimise performance characteristics for specific applications.
Manufacturing Process of Seamless Monel Pipe
We start the manufacturing process by heating and hot extruded a solid billet into a hollow shell. Later cold drawing is used to adjust the size and achieve a better surface finish. Such a fabrication technique is capable of yielding a Monel pipe that is truly seamless, with uniform wall thickness. Visit this page to know more about our manufacturing process.
Key Properties of Monel Alloy Seamless Pipe
Our Monel seamless pipes deliver 5 key properties.
- High nickel content: Monel seamless pipes contain approximately 63–70% nickel, which improves corrosion resistance and maintains structural integrity in aggressive environments.
- Excellent corrosion resistance: The nickel-copper mix is resistant to a wide range of industrial chemicals, hydrofluoric acid, alkylation processes, and seawater.
- High mechanical strength: Due to its seamless nature, this pipe has high mechanical strength, with tensile strength around 70,000 psi depending on the grade.
- Good performance at high temperatures: Monel seamless pipes maintain mechanical strength and corrosion resistance at temperatures up to approximately 1000°F (538°C), supported by the thermal stability of the nickel-copper alloy matrix.
- Excellent resistance to seawater and salt environments: These pipes offer strong resistance to chloride-induced stress corrosion cracking and pitting, making them well suited for marine and offshore applications.
Different Grades of Seamless Monel Pipes
We supply two primary Monel grades for seamless piping applications, each engineered for specific performance requirements. Our inventory includes both standard and specialized compositions to meet diverse industry needs.
01
Monel 400 Seamless Pipe
Also known as UNS N04400 / 2.4360, this pipe has about 63% nickel and 28–34% copper. It provides excellent corrosion resistance in reducing environments. Our Monel 400 seamless pipe works well in seawater and hydrofluoric acid alkylation units where it needs to be saved from corrosion.
02
Monel K-500 Seamless Pipe
This age-hardenable alloy (UNS N05500 / 2.4375) is alloyed with aluminum (2.3–3.15%) and titanium (0.35–0.85%) to give it better mechanical strength. Our Monel K-500 seamless pipe provides significantly higher strength than Monel 400, making it suitable for high-pressure and heavy-load applications.
100% Certified Testing & Documentation
- EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Raw Materials Certificate
- 100% PMI
- Heat Treatment Charts
- Third-Party Inspection Report
- Surface roughness and size measurement
- Manufacturer Test Certificate (Impact Testing, Flattening, Flare, Bend, Hardness, Intergranular, Pitting Corrosion, Grain size, ET, UT, HT)
- Laboratory Test Certificate from the Government-Approved Lab
Applications of Monel Seamless Pipe
We supply Monel seamless pipes across 7 major industries where corrosion resistance and mechanical strength are non negotiable requirements.
Marine and offshore engineering
We supply Monel seamless pipes for seawater cooling systems, propeller shafts, and offshore platform piping. These pipes resist corrosion from constant saltwater. They stay strong where carbon steel deteriorates rapidly under similar conditions.
Chemical processing
Our pipes are used in hydrofluoric acid alkylation units, chlorinated solvent equipment and acid production plants. The nickel-copper alloy stops damage from harsh chemicals that harm regular pipes.
Oil and gas industry
We manufacture seamless Monel alloy pipes for equipment that handles sour gas, distils crude oil, and works underwater. These pipes can handle the corrosive effects of hydrogen sulfide and chlorides that are common in places where petroleum is processed.
Power generation
Our pipes are utilised in condenser tubes, feedwater heaters, and steam generator systems where high-temperature water and steam cause rapid corrosion. The thermal stability ensures long-term performance without degradation.
Aerospace and military
We manufacture Monel seamless pipes for aircraft fuel systems, hydraulic lines, and naval submarine components. The combination of corrosion resistance and high strength-to-weight ratio makes them essential for critical aerospace applications.
Desalination plants
We put our pipes in reverse osmosis systems, brine heaters, and evaporator chambers, where concentrated salt solutions break down regular materials. The resistance to chloride means that it will work without needing any maintenance for decades.
Heat exchangers & condensers
We supply Monel seamless pipes for shell-and-tube heat exchangers and marine condensers. It transfers heat efficiently and resists corrosion inside and out.
Frequently Asked Questions
-
Why choose seamless Monel pipe over welded pipe?
-
What are the main grades of Monel used for seamless pipes?Monel 400 (UNS N04400) and Monel K-500 (UNS N05500) are the primary grades we manufacture.
-
What standard covers Monel seamless pipes?ASTM B165 is the standard specification that covers nickel-copper alloy seamless pipe and tube.
-
Why are Monel seamless pipes more expensive?The high nickel content and copper composition, combined with specialized seamless manufacturing processes result in higher raw material and production costs. The extended service life and reduced maintenance often offset the initial investment.
-
What is the main advantage of Monel seamless pipes?The combination of exceptional corrosion resistance in aggressive environments and high mechanical strength makes them irreplaceable in applications where standard materials fail quickly.
-
How do I choose between Monel 400 and Monel K-500 seamless pipes?Choose Monel 400 if you need maximum corrosion resistance and good strength. Choose Monel K-500 if you need higher mechanical strength, especially for high-pressure or heavy-load applications.
