A Nickel 200 tube also called Commercially pure nickel or Low alloy nickel, is a wrought nickel tube that is 99.6% pure. It offers excellent strength, high thermal/electrical conductivity, and resistance to various corrosives like caustics and saltwater.
ASTM B163 Nickel 200 Seamless Tubes Manufacturer in China
We are Zhejiang Xintongda Special Steel (XTD), a trusted Nickel 200 seamless tube manufacturer in China and a global supplier. This Nickel 200 tube, also known as commercially pure nickel, is a 99.6% pure wrought nickel tube. This tube is a widely preferred choice because of its excellent resistance to corrosion in various reducing environments. We manufacture this tube in compliance with the ASTM B163 standard. This Alloy 200 tube has beneficial qualities like durability and low vapor pressure. This makes it ideal for chemical processing, aerospace, and many other applications as explained further in detail. This Alloy 200 tube is suitable for service temperatures up to approximately 600°F (315°C), beyond which Nickel 201 is recommended due to its lower carbon content. Each of our Nickel alloy 200 tubing batches undergoes strict quality checks before delivery. We are ISO-certified and have an annual supply capacity of 25,000 tons. To secure the best rates, buy directly from us and save costs on high quality Nickel 200 tubing.
Our Nickel 200 seamless tubes follow these specifications:
-
Standard
ASTM B163
-
OD Range
6–457 mm
-
Thickness
1-65 mm
-
Length
≤ 22 m
Get a free quote now
Technical Data
Technical Data
Key steps in manufacturing Nickel 200 Tube
As a leading Nickel 200 tube manufacturer, we produce UNS N02200 tubes by heating and hot extruded a high-purity nickel billet into a hollow shell. This shell is then hot-worked and cold-drawn to get the exact size and surface finish. Final annealing heat treatment is done to relieve internal stresses, make the material more flexible and make sure that its mechanical properties are always consistent, as required by ASTM specifications. Check out our detailed manufacturing process.
What are the Features of Alloy 200 Nickel Tubing?
Nickel alloy 200 tubing has 5 key features. These include corrosion resistance, great thermal/electrical conductivity, good mechanical properties, high strength and low gas content and low vapor pressure.
- Corrosion Resistance: Alloy 200 tube provides excellent resistance to corrosion from caustic alkalies and neutral salt solutions. It remains stable in these environments because of its high-purity nickel content.
- Great Thermal/Electrical Conductivity: This tube has high thermal and electrical conductivity due to its high nickel purity. Its conductivity is higher than other nickel alloys such as Monel, Inconel, and Hastelloy. This allows it to transfer heat and electricity efficiently in demanding industries.
- Good Mechanical Properties: Nickel 200 tube maintains good mechanical properties over a wide range of temperatures, from sub-zero to 600º F. This makes sure that the material stays strong and flexible even under various working loads.
- High Strength: Nickel Alloy 200 tubing is very strong, so it can handle a lot of internal and external pressure. It keeps pipelines and reactors strong in harsh environments.
- Low Gas Content and Low Vapor Pressure: The tube has low gas content and low vapor pressure. This is important for vacuum applications. This feature prevents contamination and ensures stability in sensitive electronic or chemical environments.
What is the equivalent standard for Nickel Alloy 200?
Some of the global equivalents of Nickel Alloy 200 include American UNS N02200, German Werkstoff Nr. 2.4066, European EN Ni 99.2, British BS HR 10 / NA11, and Japanese JIS NW 2200.
| GRADE | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
100% Certified Testing & Documentation
- EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Raw Materials Certificate
- 100% PMI
- Heat Treatment Charts
- Third-Party Inspection Report
- Surface roughness and size measurement
- Manufacturer Test Certificate (Impact Testing, Flattening, Flare, Bend, Hardness, Intergranular, Pitting Corrosion, Grain size, ET, UT, HT)
- Laboratory Test Certificate from the Government-Approved Lab
Nickel 200 Seamless Tube Industries and Applications
Nickel 200 seamless tube is used in 9 demanding industries. These include:
Chemical processing
This tube is used to handle caustic soda and other alkalies in processing plants. The material prevents contamination and resists chemical attack during continuous production cycles.
Aerospace
As it can endure high temperatures and corrosion Alloy 200 tube is used for fuel lines and aircraft components. It works well in harsh conditions where high-purity materials are needed.
Marine
The tube is used for its exceptional corrosion resistance, especially in seawater, for critical components like piping in desalination plants, heat exchangers, condensers and offshore oil rigs. It is also used in shipbuilding parts that need durability against harsh saltwater. It is chosen for high-velocity seawater.
Oil and Gas
Nickel 200 seamless tube is used in oil and gas facilities, where resistance to caustic environments and high-purity chemical handling is required. This tube is commonly applied in refining units, alkali handling systems, chemical injection lines, and process piping exposed to corrosive media.
Heat exchangers
This seamless tube is ideal for heat exchanger tubing because it has excellent thermal conductivity. It facilitates efficient energy transfer between different fluids in industrial heating systems.

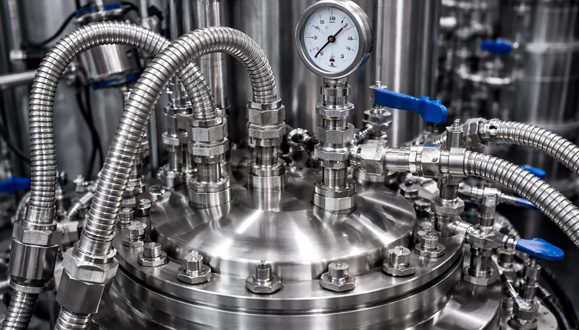

Reactors
In chemical reactors, where high purity is needed to prevent unwanted reactions, Nickel 200 tube is used. It maintains its shape and strength even under constant chemical exposure.
Pipelines
This Nickel 200 tubing is used for transporting corrosive chemicals and gases over long distances. The seamless construction ensures there are no leaks in high-pressure transport lines.
Power generation
Power plants use this tube in steam generators and condensers. It is very resistant to oxidation and thermal stress during the production of electricity.
Food processing
The Alloy 200 tube is used for equipment that handles fatty acids and fruit juices. It ensures that no metallic taste or contamination enters the food products.
Frequently Asked Questions
-
