A 304L stainless steel tube, commonly known as TP304L, is an extra-low-carbon austenitic stainless steel consisting of 18-20% chromium, 8-13% nickel, 2% manganese, maximum 0.030–% carbon, and other elements. It is one of the grades of austenitic stainless steel tubes.

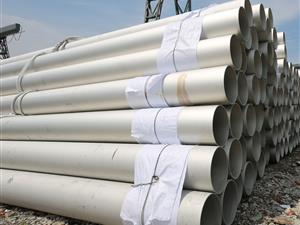

ASTM A213 304L Stainless Steel Seamless Tube Manufacturer in China
We at Xintongda Special Steel (XTD) are a reliable manufacturer and supplier of stainless steel 304L seamless tubes in China. The 304L stainless steel seamless tube, also known as TP304L, is a strong, low-carbon austenitic stainless steel made of chromium (18-20%), nickel (8.0-12.0%), manganese (around 2%), maximum 0.030% carbon, iron (balance), and traces of other elements. We manufacture our SS 304L tubes according to the ASTM A213, A269, A511, and EN 10216 standards. The chromium and nickel content help resist corrosion and oxidation, and the low-carbon content prevents the tube from sensitisation while welding. The TP304L provides a high strength-to-weight ratio. It can be used at elevated temperatures up to 870°C for intermittent service and up to 925°C for continuous service. These features make it essential for chemical processing units, mining operations, and many other industries exposed to harsh environments.
At XTD, we have been serving China for 4 decades and hold multiple international certifications. We have an annual supply capacity of 25,000 tons, which helps us deliver in-stock orders within a week and production orders in 15-60 days.
Product specifications:
-
Standard
ASTM A213
-
OD Range
6.35-257 mm
-
Thickness
0.89-12.7 mm
-
Length
≤ 22 m
Get a free quote now
Technical Data
Technical Data
Stainless Steel 304L Seamless Tubes Manufacturing Process
We manufacture the 304L Stainless Steel tube by taking a solid billet of that alloy and heating and piercing it to form a hollow shell. Then this shell is hot-worked and cold-drawn to achieve the precise dimensions. After that, we perform solution annealing to retain its corrosion resistance properties. The tube is then sent for pickling and straightening for a smooth surface finish. Now, the tube is ready for testing. To study the manufacturing process in detail, kindly check out this page.
What are the Features of 304L SS Tubing?
The SS 304L Tube has 4 main characteristics: excellent corrosion resistance, high strength-to-weight ratio, remarkable ductility, and exceptional weldability.
- Corrosion Resistance: The chromium content present in this alloy reacts with oxygen and forms a passive oxide layer, which prevents the tube from oxidation. The low carbon content improves the intergranular corrosion resistance and reduces sensitisation.
- Good Mechanical Strength: The TP304L has high strength because the material has more tensile & yield strength and can be manufactured with reduced wall thickness.
- Ductility: The austenitic microstructure of this alloy, stabilized by nickel content, makes SS 304L highly ductile.
- Weldability: The TP304L tube is easily weldable because of the low carbon content. It doesn’t let chromium carbides form during the welding process, which maintains corrosion resistance in the heat-affected zones.
ASTM A213 TP304L Stainless Steel Tube Equivalent Material
The UNS designation for 304L stainless steel tube is S30403. It is also recognized by DIN/EN 1.4306/1.4307 and JIS SUS304L.
| GRADE | UNS | GB | JIS | ISO | DIN/EN | GOST | |
| ISC | NEW | ||||||
| 304L | S30403 | S30403 | 022Cr19Ni10 | SUS304L | X2CrNi18-9 | 1.4307 | 03X18H11 |
100% Certified Testing & Documentation
- EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Raw Materials Certificate
- 100% PMI
- Heat Treatment Charts
- Third-Party Inspection Report
- Surface roughness and size measurement
- Manufacturer Test Certificate (Impact Testing, Flattening, Flare, Bend, Hardness, Intergranular, Pitting Corrosion, Grain size, ET, UT, HT)
- Laboratory Test Certificate from the Government-Approved Lab
Stainless Steel 304L Seamless Tube Industries
The TP304L stainless steel seamless tube is used in the following industries:
Furnaces & Thermal Equipment
The TP304L seamless stainless steel tube is used in radiant and convection furnace tubes, exhaust and flue gas handling tubes, hot fluid circulation lines, and heat-treatment equipment tubes.
Petrochemical & Chemical Industry
The UNS S30403 tube is found in reactor auxiliary tubing, distillation column internals, chemical storage & distribution systems, and process piping & fluid transfer lines.
Power Generation
Generally used in desalination & water treatment units within power plants, steam & water distribution lines, instrumentation tubing, and boiler auxiliary tubing.
Food & Beverage Processing
The stainless steel 304L tubes can be found in steam and hot water lines for food processing, clean-in-place (CIP) system piping, and heat exchanger tubes in pasteurisation systems.
Industrial Equipment & Automotive
For the industrial equipment & automotive industry, the TP304L is used in structural tubing, exhaust system components, fuel & lubricant lines, and hydraulic systems.
Frequently Asked Questions
-
What is 304L Stainless Steel Tube?
-
How is a 304L stainless steel tube installed?Installing a 304L stainless steel tube includes cutting and deburring the ends, and then welding it carefully with the base using either TIG or MIG.
-
What are the standard sizes available for 304L Stainless Steel Tube?The standard sizes for 304L stainless steel tube are 6.35-257 mm for outer diameter, 0.89-12.7 mm for thickness, and up to 18 m for length. We at XTD also provide customised solutions for non-standard OD sizes.
