Incoloy 800 tubes operate up to 593 oC (1200°F) in high-temperature service, with hot working performed between 1600°F and 2250°F (871–1232°C)

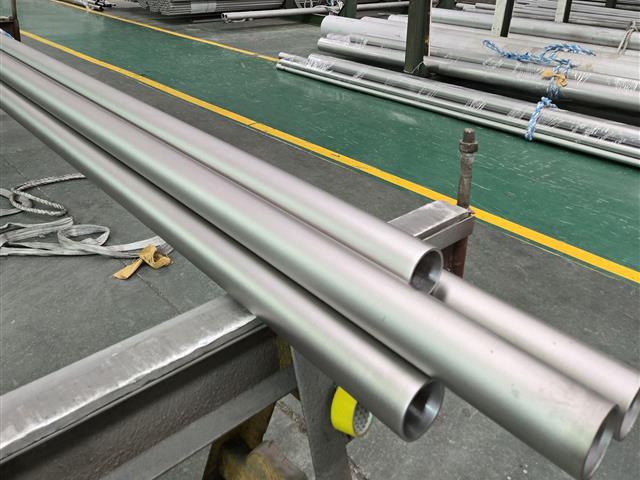

ASTM B407 Incoloy 800 Seamless Tube Manufacturer
We are Xintongda Special Steel (XTD), a reliable Incoloy 800 Seamless tube manufacturer in China. Incoloy 800 tube is a high-performance tube made of nickel-iron-chromium alloy. It is made of nickel (30-35%), chromium (19-23%) and balance iron. Our alloy 800 tubes are made as per the ASTM B407 standard. This tube is known for its exceptional strength and resistance to high temperatures, oxidation, corrosion, and carburisation. Incoloy 800 tube is preferred for applications that require high-temperature performance up to 593°C (1100°F) without the need for superior long-term creep and stress-rupture strength. We provide this Alloy 800 seamless tube for long-term heat exposure in heat exchangers, furnace components and petrochemical equipment that need structural stability. We have over 4 decades of experience and use strict inspection and controlled heat treatment (annealing) to make this ASTM B407 UNS N08800 tube.
As a reputable and global Incoloy 800 seamless tube supplier, we provide this tube that meets the following specifications:
-
Standard
ASTM B407
-
OD Range
6-457 mm
-
Thickness
1-65 mm
-
Length
≤ 22 m
Get a free quote now
Technical Data
Technical Data
Manufacturing Process of Alloy 800 Seamless Tube
The manufacturing process of Alloy 800 seamless tube usually starts with a solid round bar of nickel-iron-chromium alloy. This billet is hot-pierced to make a hollow shell. After that, the tube goes through several rounds of cold drawing and intermediate annealing (heat treatment) to get its diameter and wall thickness down to the final required sizes and get the desired microstructure. The finished tube undergoes non-destructive testing and final inspection before shipment. To learn more about our Alloy 800 seamless tube manufacturing process, visit our product page.
Characteristics of Incoloy 800 Seamless Tube
Incoloy 800 tubes have 5 features that make them suitable for many demanding applications. These include workability, mechanical properties, good oxidation resistance, corrosion resistance, and heat treatment. Each feature is explained below in detail:
- Workability: Incoloy 800 tube is easily formed and fabricated using standard industrial processes due to its high ductility. It can be readily welded and machined. This simplifies the manufacturing and installation of complex systems.
- Mechanical Properties: The tube exhibits excellent tensile strength and superior resistance to creep and stress-rupture, even at elevated temperatures. These stable properties ensure reliable long-term performance in high-stress environments.
- Oxidation Resistance: Alloy 800 tube resists deterioration and scaling when exposed to oxidising atmospheres and high heat due to the high chromium content. This protective quality allows the tube to be used reliably in high-temperature applications like furnace components without rapid material loss.
- Corrosion Resistance: The tube provides good resistance to many corrosive media, including various acids and aqueous environments. This inherent protection makes the tube ideal for use in chemical processing and petrochemical industries where aggressive substances are present.
- Heat Treatment: The tube's properties are enhanced through controlled thermal processes, which stabilise its metallurgical structure. Correct heat treatment ensures the Alloy 800 tube achieves its full potential for strength and resistance to sensitisation.
Incoloy 800 UNS N08800 Equivalent Material
Incoloy 800 tube is commonly known by its UNS designation, UNS N08800. Some other global equivalents include Werkstoff Nr. 1.4876, GB NS 1101, JIS NCF 800 and DIN 1.4876.
| GRADE | UNS | GB | JIS | ISO | DIN/EN | GOST | |
| ISC | NEW | ||||||
| Incoloy 800 | N08800 | - | NS1101 | NCF800 | - | 1.4876 | - |
100% Certified Testing & Documentation
- EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC)
- Raw Materials Certificate
- 100% PMI
- Heat Treatment Charts
- Third-Party Inspection Report
- Surface roughness and size measurement
- Manufacturer Test Certificate (Impact Testing, Flattening, Flare, Bend, Hardness, Intergranular, Pitting Corrosion, Grain size, ET, UT, HT)
- Laboratory Test Certificate from the Government-Approved Lab
Application of Incoloy 800 Seamless Tube
Incoloy 800 tubing finds application in 5 major industries. These include:
Petrochemical Plants
Alloy 800 tube is essential in equipment like heat exchangers and reformer piping within petrochemical processes. The tube's resistance to sulfidation and harsh chemical attack ensures reliable long-term performance in high-temperature environments.
Aerospace & Marine
Incoloy 800 tube is used for demanding components such as exhaust systems in aerospace and pipeline parts in marine environments. Its high strength and corrosion resistance make it reliable for applications exposed to saltwater and extreme temperatures.
Power Plants
It is generally used in energy generation like superheater and reheater tubing in steam boilers. The tube's superior creep and stress-rupture strength at elevated temperatures ensures the structural integrity of the steam systems.
Heat Treatment
In industrial furnaces, this tubing forms structural parts like radiant tubes, muffles, and heat-treating baskets and fixtures. The tube resists oxidation and carburization in hot and controlled atmospheres. This extends the life of the furnace components.
Food & Dairy
In the food and dairy industry, Alloy 800 tube serves brewery equipment, heat exchangers, condensers, and piping systems. Its excellent corrosion resistance and ease of cleaning make it ideal for hygienic processing environments.
Frequently Asked Questions
-
What is the maximum operating temperature for Incoloy 800 Tubes?
-
What industries commonly use Incoloy 800 seamless tubes?Incoloy 800 seamless tubes serve chemical processing, petrochemical, power generation, oil and gas, heat exchangers, and nuclear plants. They handle corrosive gases and steam at high heat.
-
Where to find certified Incoloy 800 seamless tubes with material test reports?As an multiple international certified company, we at XTD are a reliable and global Incoloy 800 seamless tube supplier, and we provide certified material test reports with each of our Incoloy 800 seamless tubes
-
How to select the best supplier for Incoloy 800 seamless tubes?Choosing the best supplier involves checking for a good reputation, positive reviews, full certifications, and traceability from raw materials. At XTD, we provide certified test reports, reasonable pricing options, and quality customer service.
